PNP and NPN Sensor Wiring

A PNP (Positive-Negative-Positive) sensor is often used in industrial automation to detect the presence or absence of objects. When wiring a PNP sensor, follow these steps:

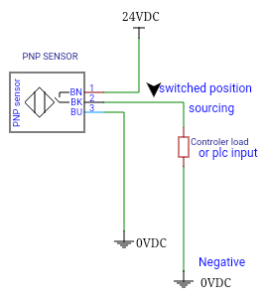

PNP and NPN sensor wiring

A PNP sensor typically has three wires. the power supply wire (+V), the output wire (OUT), and the ground wire (GND).

Power Supply Connection:

Connect the power supply wire (+V) to a positive voltage source that matches the sensor’s voltage requirement. This is usually a higher voltage than the control system’s voltage.

Output Connection:

The output wire (OUT) carries the sensor’s switching signal. Connect this wire to the input of your control system or PLC (Programmable Logic Controller).

Ground Connection:

Connect the ground wire (GND) to the common ground of your control system or the negative terminal of the power supply.

Load Connection (Optional):

If the PNP sensor is driving a load like a solenoid or a relay, connect the load between the output wire (OUT) and the positive voltage source.

Testing:

After wiring, test the sensor by placing an object in its detection range. The sensor’s output should change state (from OFF to ON or vice versa) as the object is detected or removed.

NPN Sensors Wiring

An NPN (Negative-Positive-Negative) sensor is wired similarly but has some differences

• Identify the Wires: An NPN sensor also has three wires: the power supply wire (GND), the output wire (OUT), and the load wire (+V).
• Power Supply Connection:Connect the power supply wire (GND) to the common ground of your control system or the negative terminal of the power supply.
• Output Connection:Connect the output wire (OUT) to the input of your control system or PLC.
• Load Connection (Optional):If a load is used, connect the load between the output wire (OUT) and the load wire (+V).
• Load Wire Connection:Connect the load wire (+V) to a positive voltage source that matches the sensor’s voltage requirement.
• Testing:Test the NPN sensor as you did with the PNP sensor by introducing and removing objects within its detection range.

PNP and NPN sensor wiring Tips for Both Wiring Types

• Polarity:Ensure you connect the wires according to the correct polarity. Mistakes in wiring can lead to incorrect sensor behavior or even damage.
• Voltage: Always use the correct voltage levels for your sensors and components. Check the sensor’s datasheet for voltage specifications.
• Grounding: Proper grounding is crucial for reliable operation. Connect all ground wires to a common ground point.
• Sensor Placement: Mount the sensors in appropriate positions to ensure accurate object detection and reliable operations.
